PurAire Model
SG-MINI-5A
Bipolar Ioniser for Cassette and Split Aircons
The PurAire SG-Mini-5A is a compact Glass DBD bipolar ioniser designed for installation inside ceiling cassette and wall-mounted split air conditioners. It uses the aircon’s existing airflow to distribute ions through the room whenever the fan operates. It draws only 5 W, has no fan of its own, and leaves no additional equipment standing in the room.
The Room is Clean. It Still Smells.
In Singapore’s humidity, ceiling cassette and split aircon units hold onto odours. Damp and musty smells, mould and mildew related odours, tobacco, food, urine, VOCs from furnishings, pet odours, body odours. Housekeeping cleans the room properly and the smell is still there when the guest walks in.
The result is a room change request, a comment on the guest survey, or a room held out of inventory altogether — which is the expensive one.
Or worse, a customer or client taking one whiff of the air inside your guest room, store, office or meeting room and turning around and leaving.
Treating the room from inside the aircon deals with the air the unit is actually circulating thus continuously removing those odours.
What is the PurAire SG-Mini-5A?
The SG-Mini-5A is a compact bipolar ioniser designed specifically to fit inside a ceiling cassette or wall-mounted split air conditioner. It uses PurAire Glass DBD – dielectric barrier discharge – ionisation technology in a housing small enough to mount inside compatible aircon units. It draws just 5 watts, runs silently and can treat a room of up to 50 to 60 m².Â
The aircon’s own fan distributes the treated air into the room. There is no separate fan, no additional ducting and no visible room-side unit.
A built-in airflow switch means the ioniser operates when the aircon fan is running and stops when the fan stops.
Ionisation output is selectable so the installer can match the setting to the room and aircon configuration.
What Room Odours Can the SG-Mini-5A Help Reduce?
The SG-Mini-5A is primarily used to remove persistent room odours, including:
- Damp, musty and mildew-related odours
- Cigarette, cigar and tobacco odours
- Vape odours
- Food and cooking smells from cheeses to durian
- Body and perspiration odours
- Urine-related odours
- Pet odours
- Odours associated with furnishings, carpets and recent refurbishment.
It also reduces airborne particulate matter such as PM2.5 and PM10 particles. Ions cause fine particles to clump together, which makes them heavy enough to fall out of the air or be caught by the aircon filter.
Note: If the odour is being caused by an active moisture leak, blocked drain, contaminated material or another continuing source, that source still needs to be corrected. Air treatment does not replace source control.
How Quickly Can The SG-Mini-5A Reduce Room Odours?
Generally, hours, not days. In a typical guest room with the air conditioning running, odours clear within a few hours of the unit being switched on.
How long depends on the room, how strong the source is, how much the air conditioning is running and what the odour has soaked into. Soft furnishings hold onto smells and take longer than the air does.
What people describe after installation of the SG-Mini-5A is a room or shop or office that smells fresh and crisp — and, more to the point, one where the musty smell that was there before simply is not.
Can the SG-Mini-5A be Retrofitted Into An Existing Aircon?

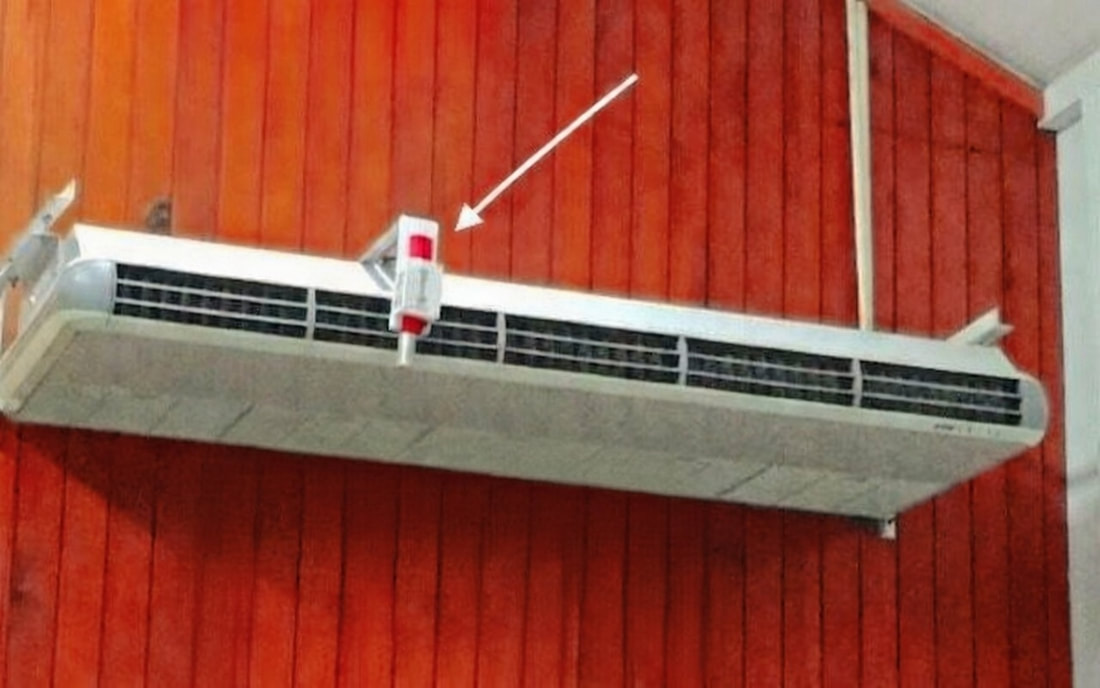

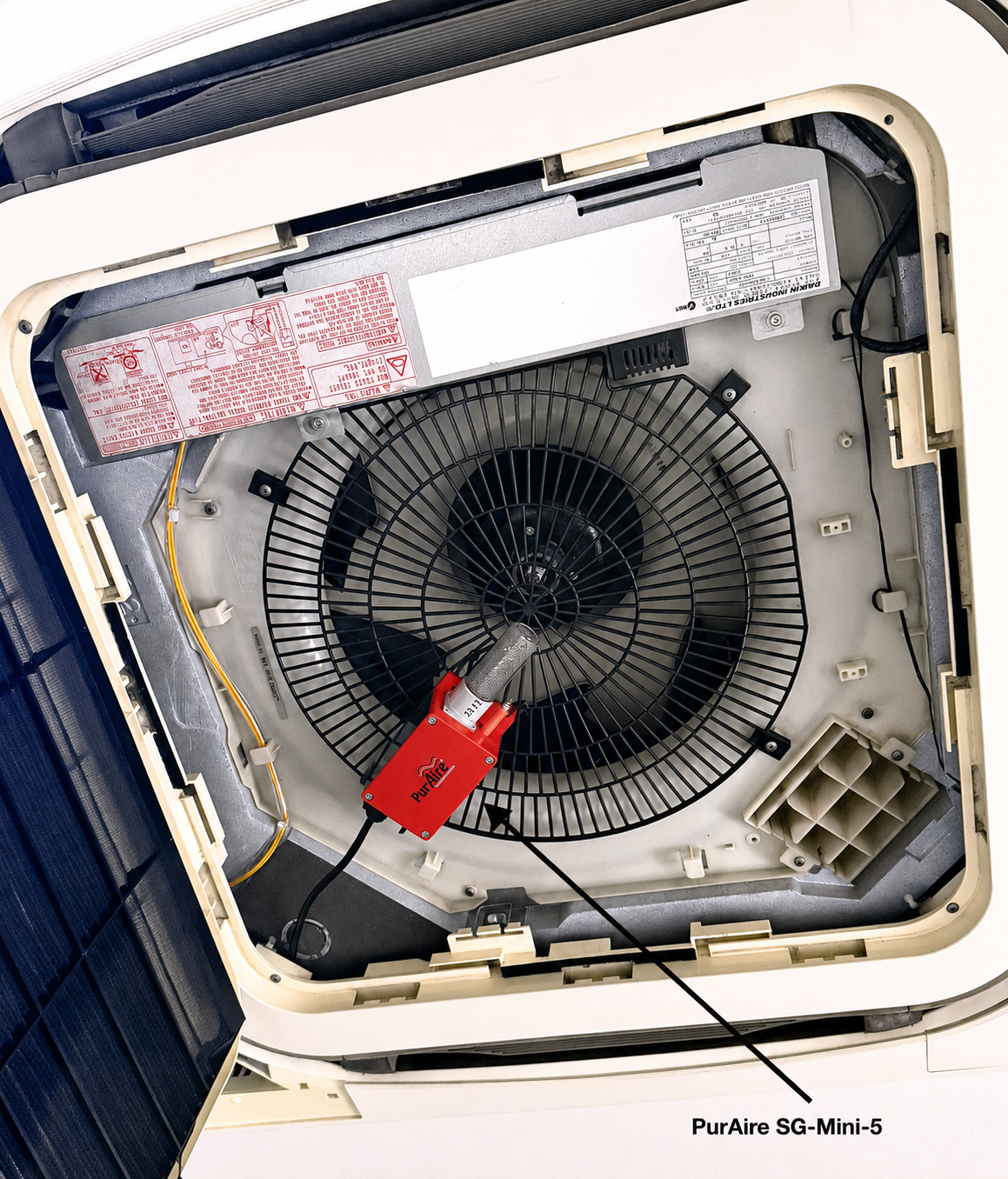

The SG-Mini-5A retrofits into existing ceiling cassette and wall-mounted split units. No major modification, no ducting work, typically under fifteen minutes per unit.
To see whether it fits, depends on the internal space in your aircon, the airflow arrangement and the electrical supply. Send us the aircon model number or a clear photograph of the unit with the cover off, and we will confirm before anyone comes to site.
Once installed, nothing is visible in the room.
PurAire SG-Mini-5A Specifications
| Specification | PurAire SG-Mini-5A |
|---|---|
| Product Type | Compact Glass DBD bipolar ioniser for ceiling cassette and split aircon |
| Installation | Inside a ceiling cassette or wall-mounted split air conditionaer |
| Size & Weight | 200mm x 50mm x 70mm; 450g |
| Coverage Guide | 50 to 60 m² |
| Power Consumption | 5 W |
| Airflow Switch | Built In |
| Output Control | Selectable ionisation output levels |
| Noise | No fan of its own |
| Installation Time | Typically under 15 minutes |
| Ion Tube Service Life | Rated 17,000 Operating Hours |
| Ion Tube Warranty | 1 Year |
| Unit Warranty | 2 Years |
Built-In Airflow Switching and Adjustable Output
The SG-Mini-5A has a built-in airflow switch. When the aircon fan runs, the ioniser runs. When the fan stops, the ioniser stops.
This avoids unnecessary operating hours while the aircon is off and helps extend ion-tube service life and save energy. Because the airflow switch is built into this model, a separate airflow interlock is not normally required for this function.
Ionisation output is selectable, allowing the installer to choose an appropriate setting for the room and aircon configuration.
Singapore Serviced Apartment Case Study: Persistent Musty Guest-Room Odour
A Singapore five-star serviced apartment operator had guest suites being held out of inventory because of a persistent musty odour. PurAire SG-Mini-5A units were retrofitted inside the property’s existing ceiling cassette air conditioners.
According to the engineer’s testimonial, the affected suites could be put back into inventory quickly and sold again. Rooms that were being held back went into inventory. For an operator, hotel GM or owner, that is the whole argument — the cost of a blocked suite over a few days or a month is a multiple of what the unit costs. (Typical ROI is just several room night revenue)
Summary of The Benefits for Hotel Rooms, Clinics, Offices & Small Spaces:
- Fast Odour Removal: Mould/mildew, tobacco, urine, food, body odours, VOCs gone in hours.
- PM10 & PM2.5 Reduction: Agglomerates particles for cleaner air.
- Discreet & Efficient: Completely silent - No guest will notice, Energy usage is just 5 watts
- Simple and fast installation - less than 15 minutes
- Minimal to zero maintenance - Ionisation tube life is about 17,000 hours
Will It Fit Your Aircon?
Send us the aircon model number or a clear photograph of the unit with the cover open. We will check whether the SG-Mini-5A is suitable before anyone comes to site.
Tell us about the room, the aircon and the odour problem you are trying to solve. PurAire Singapore offers free site evaluation and on-site demonstration across Singapore.
PurAire Singapore, a division of ProMedUSA Pte Ltd
Office: +65 6836 9665
WhatsApp: +65 9456 8313
Frequently Asked Questions
In most cases, yes. Installation is typically completed in under 15 minutes, although compatibility depends on internal space, airflow arrangement, electrical supply and access. Send us the aircon model number or a clear photograph with the cover open and we will check first.
The SG-Mini-5A is designed for suitable ceiling cassette and wall-mounted
split air-conditioning installations. It fits inside the aircon so the unit’s existing airflow can distribute bipolar ions into the occupied room.
Yes. The SG-Mini-5A is designed with a built-in airflow-control function so ionisation can operate with the air-conditioning system rather than running independently of the aircon airflow.
Yes. The SG-Mini-5A provides selectable ionisation output levels so the installer can match operation more closely to the application.
50 to 60 m², which covers a typical hotel guest room, serviced apartment suite, small office or clinic room.
Hours rather than days, with the air conditioning running. How long depends on the room, the strength of the source and what the odour has soaked into — soft furnishings take longer than the air does.
The Glass DBD ion tube is rated for 17,000 operating hours. It should be inspected and cleaned at the interval specified in the manual and replaced at the end of its service life. The ioniser itself does not use a replaceable air filter and requires no maintenance.
